Product Summary

The IDT89HPES24T3G2ZCALG is a 24-lane 3-port switch. It provides the most efficient I/O connectivity solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers.

Parametrics

IDT89HPES24T3G2ZCALG absolute maximum ratings: (1)Core supply: 1.5V; (2)pcie analog supply: 1.5V; (3)pcie analog high supply: 4.6V; (4)pcie transmitter supply: 1.5V; (5)i/o supply: 4.6V.

Features

IDT89HPES24T3G2ZCALG features: (1)high performance PCI express switch; (2)flexible architecture with numerous configuration options; (3)legacy spport; (4)highly integated solution; (5)reliability, availability, and serviceability features.

Diagrams

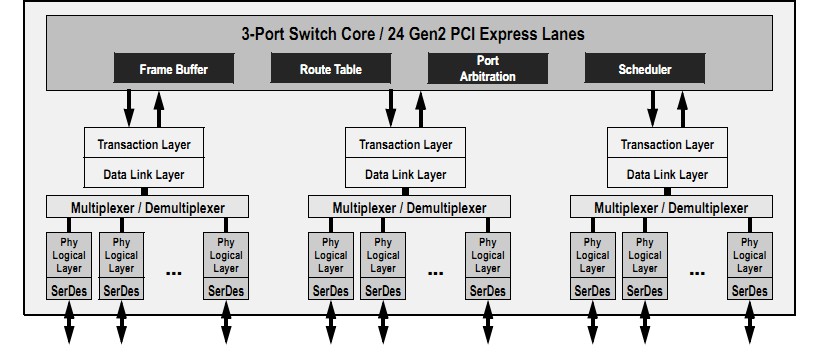

IDT89HPES24T3G2ZCALG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT89HPES24T3G2ZCALG
IDT89HPES24T3G2ZCALG

IC PCI SW 24LANE 3PORT 324-FCBGA
Data Sheet
0-1: $54.80
1-25: $48.80
25-100: $46.23
100-250: $44.52
250-500: $43.67
500-1000: $41.78
1000-2500: $41.10
IDT89HPES24T3G2ZCALG8
IDT89HPES24T3G2ZCALG8

IC PCI SW 24LANE 3PORT 324-FCBGA
Data Sheet
0-750: $42.81
