Product Summary

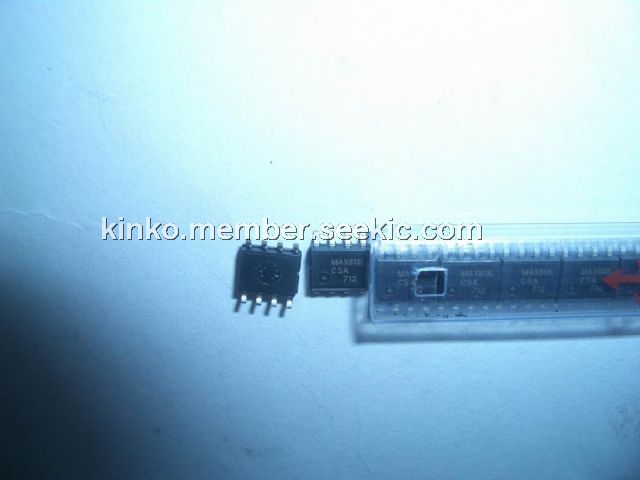

The MAX813LCSA+ microprocessor (μP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in μP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX813LCSA+ is the same as the MAX705, except RESET is provided instead of RESET. Two supply-voltage monitor levels are available: The MAX813LCSA+ generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/MAX708 generate a reset pulse below 4.40V. MAX813LCSA+ is available in 8-pin DIP, SO and μMAX packages.
Parametrics
Absolute maximum ratings:(1)Terminal Voltage (with respect to GND): -0.3V to 6.0V; (2)All Other Inputs: -0.3V to (VCC + 0.3V); (3)Input Current: 20mA; (4)Output Current (all outputs): 20mA; (5)Continuous Power Dissipation; (6)Plastic DIP (derate 9.09mW/°C above +70°C): 727mW; (7)SO (derate 5.88mW/°C above +70°C): 471mW; (8)μMAX (derate 4.10mW/°C above +70°C): 330mW; (9)CERDIP (derate 8.00mW/°C above +70°C): 640mW; (10)Operating Temperature Ranges: 0°C to +70°C; (11)Storage Temperature Range: -65°C to +160°C; (12)Lead Temperature (soldering, 10sec): +300°C.
Features
Features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout(MAX705/MAX706); (7)Active-High Reset Output(MAX707/MAX708/MAX813L); (8)Voltage Monitor for Power-Fail or Low-Battery Warning.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201131721749925.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX813LCSA+ |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX813LCSA+T |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
