Product Summary
The MCF5206EAB40 integrated microprocessor combines a Version 2 ColdFire core with several peripheral functions such as a DRAM controller, timers, parallel and serial interfaces, and system integration. This device is an enhanced version of the ColdFire MCF5206 microprocessor. The enhancements made to the MCF5206EAB40 are increased 4 Kbyte I-cache and 8 KByte SRAM , increased frequency and the introduction of a Multiply Accumulate (MAC) unit, hardware divide, and twochannels of DMA. The MCF5206e processor provides a cost-effective solution delivering 50 Dhrystone 2.1 MIPs at a frequency of 54MHz.
Parametrics
Specifications: (1)50 Dhrystone 2.1 MIPS at 54 MHz; (2)0°-70°C operating temperature; (3)-40°-85°C operating temperature (40MHz); (4)Implemented in 0.35μm, TLM; (5)3.3-V supply/5.0-V tolerant I/O; (6)208-pin plastic QFP package; (7)Available at 40MHz and 54MHz.
Features
Features: (1)Version 2 ColdFire Core; (2)Multiply-Accumulate Module and Hardware Divide Unit; (3)4 KByte Direct-Mapped Instruction Cache; (4)8 KByte On-Chip SRAM; (5)DRAM Controller, supports EDO and page mode DRAMs; (6)2-channel DMA Controller; (7)Two Universal Synchronous/Asynchronous Receiver/Transmitters (UART); (8)Dual 16-Bit General-Purpose Multimode Timers; (9)I2C?-Compatible Bus System Interface.

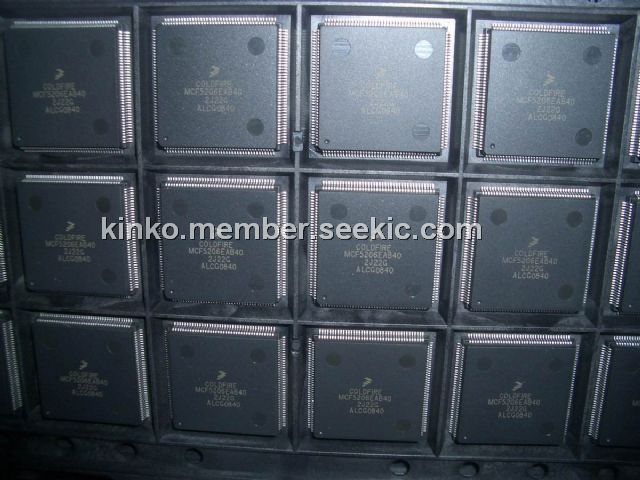

Diagrams
