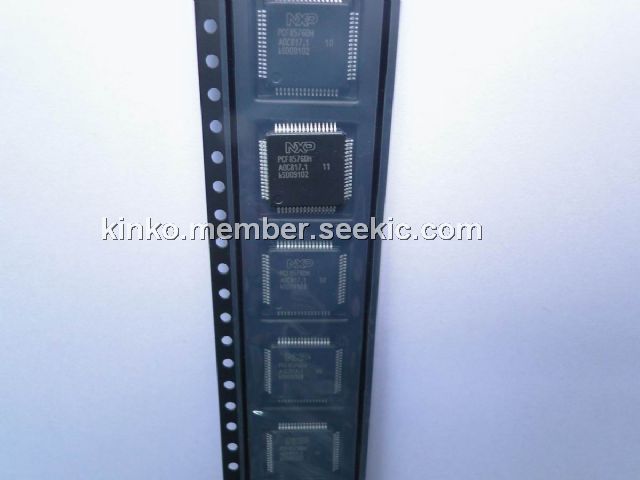

PCF8576DH/2

Product Summary

The PCF8576DH/2 is a kind of peripheral device which interfaces to almost any Liquid Crystal Display (LCD) with low multiplex rates. It generates the drive signals for any static or multiplexed LCD containing up to four backplanes and up to 40 segments and can easily be cascaded for larger LCD applications. The device is compatible with most icroprocessors/microcontrollers and communicates via a two-line bidirectional I2C-bus. Communication overheads re minimized by a display RAM with auto-incremental addressing, by hardware subaddressing and by display memory switching (static and duplex drive modes).

Parametrics

Absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +6.5 V; (2)VLCD, LCD supply voltage VSS: - 0.5 to +7.5 V; (3)Vi1, input voltage CLK, SYNC, SA0, OSC, A0 to A2: VSS - 0.5 VDD + 0.5 V; (4)Vi2, input voltage SCL and SDA: VSS - 0.5 +6.5 V; (5)VO, output voltage S0 to S39, BP0 to BP3: VSS - 0.5 VDD + 0.5 V; (6)II, DC input current: -10 to +10 mA; (7)IO, DC output current: -10 +10 mA; (8)IDD, VDD currentv-50 +50 mA; (9)ISS, VSS current: -50 +50 mA; (10)ILCD, VLCD current: -50 +50 mA; (11)Ptot, total power dissipation: - 400 mW; (12)PO, power dissipation per output: - 100 mW; (13)Tstg, storage temperature: -65 +150℃.

Features

Features: (1)Single-chip LCD controller/driver; (2)Selectable backplane drive configuration: static or 2/3/4 backplane multiplexing; (3)Selectable display bias configuration: static, 1/2 and 1/3; (4)Internal LCD bias generation with voltage-follower buffers; (5)40 segment drives: up to twenty 8-segment numeric characters; up to ten 15-segment alphanumeric characters; or any graphics of up to 160 elements; (6)40×4-bit RAM for display data storage; (7)Auto-incremental display data loading across device subaddress boundaries; (8)Display memory bank switching in static and duplex drive modes; (9)Versatile blinking modes; (10)Independent supplies possible for LCD and logic voltages; (11)Wide power supply range: from 1.8 to 5.5 V; (12)Wide logic LCD supply range: from 2.5 V for low-threshold LCDs and up to 6.5 V for guest-host LCDs and high-threshold (automobile) twisted nematic LCDs; (13)Low power consumption; (14)400 kHz I2C-bus interface; (15)TTL/CMOS compatible; (16)Compatible with 4, 8 or 16-bit microprocessors or microcontrollers; (17)May be cascaded for large LCD applications (up to 2560 elements possible); (18)No external components; (19)Compatible with chip-on-glass technology; (20)Manufactured in silicon gate CMOS process.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20113731754634.jpg" border=0>
